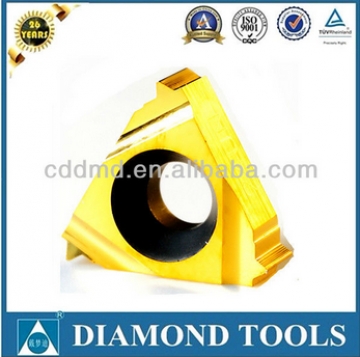

11IR 24 UN High Presicion Carbide Thread Insert UN

(0) 添加產品評論

Minimum Order Quantity

FOB Price	R0.0 / Piece
港口:	成都/上海/廣州/深圳
供應能力:	60000 片/月
付款方式:	信用證,電子匯款,西聯銀行
Minimum Order Quantity:	10 片

數量:: 庫存 (全部: 0 件數.)

所有貨物價格都請參照最新價格

Specifications
港口: 成都/上海/廣州/深圳
供應能力: 60000 片/月
付款方式: 信用證,電子匯款,西聯銀行
Minimum Order Quantity: 10 片
產品細節

11IR 24 UN High Presicion Carbide Thread Insert UN

Unique Advantages

1. Full profile design ensures the high precision of threads

2. Smooth rake face makes the chip removal easier

3. Uniform horning cutting edge ensures low cutting force

4. BALINIT? coatings (Oerlikon Balzers) allows long tool life and improves the performance

Specification

Internal Threading	D	Pitch	Designation		Dimension
Internal Threading	D	TPI	Right Hand	Left Hand	L	X	Y
American UN 60°	1/4"	32	11IR 32 UN	11IL 32 UN	11	0.6	0.6
		28	11IR 28 UN	11IL 28 UN		0.6	0.7
		24	11IR 24 UN	11IL 24 UN		0.7	0.8
		20	11IR 20 UN	11IL 20 UN		0.8	0.9
		18	11IR 18 UN	11IL 18 UN		0.8	1.0
		16	11IR 16UN	11IL 16UN		0.9	1.1

? Remark: If you can't search the types/models you are looking for, please contact us directly.

Enlarged View

Strict Production Flow

Application

Coating	TIALN	TIN
Material processed	M30 (m/min)	P30 (m/min)
Low carbon steel or medium-carbon steel	80-130	80-140
High carbon steel	60-110	60-120
Alloy steel or Adjusting quality steel	60-110	60-120
Stainless steel	60-100	/
Cast steel	60-110	60-120
Cast iron	60-200	/
Aluminum alloy or Copper alloy	90-280	/
