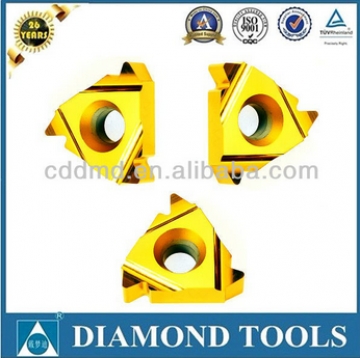

16ER12 W 16IR12 W tungsten carbide threading inserts
| FOB Price | R0.0 / Piece |
| Minimum Order Quantity: | 10 片 |
| 付款方式: | 信用證,電子匯款,西聯銀行 |
| 供應能力: | 60000 片/月 |
| 港口: | 成都/上海/廣州/深圳 |
- 數量:
付款方式: 信用證,電子匯款,西聯銀行
供應能力: 60000 片/月
港口: 成都/上海/廣州/深圳
產品細節
16ER12 W 16IR12 W tungsten carbide threading inserts
Unique Advantages
1. Smooth rake face makes the chip removal easier
2. Uniform horning cutting edge ensures the insert small cutting force
3. BALINIT? coatings (Oerlikon Balzers) allows long tool life and improves the performance
Specification
| tungsten carbide threading inserts | D | Pitch | Designation | Dimension | |||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| Whitworth BSW 55° | 3/8" | 28 | 16ER28 W | 16EL28 W | 16 | 0.6 | 0.7 |
| 26 | 16ER26 W | 16EL26 W | 0.7 | 0.8 | |||
| 20 | 16ER20 W | 16EL20 W | 0.8 | 0.9 | |||
| 19 | 16ER19 W | 16EL19 W | 0.8 | 1.0 | |||
| 18 | 16ER18 W | 16EL18 W | 0.8 | 0.9 | |||
| 16 | 16ER16 W | 16EL16 W | 0.9 | 1.1 | |||
| 14 | 16ER14 W | 16EL14 W | 1.0 | 1.2 | |||
| 12 | 16ER12 W | 16EL12 W | 1.1 | 1.4 | |||
| 11 | 16ER11 W | 16EL11 W | 1.1 | 1.5 | |||
| 10 | 16ER 10W | 16EL10 W | 1.1 | 1.5 | |||
| 9 | 16ER9 W | 16EL9 W | 1.2 | 1.5 | |||
| 8 | 16ER8 W | 16EL8 W | 1.2 | 1.7 | |||
? Remark: If you can't search the types/models you are looking for, please contact us directly.
Enlarged View
Strict Production Flow
Toolholder Recommended
Application
| Coating | TIALN | TIN |
| Material processed | M30 (m/min) | P30 (m/min) |
| Low carbon steel or medium-carbon steel |
