導航 > Home > 硬質合金螺紋刀片 > 55°英國惠氏螺紋刀片 > 螺紋刀片16IR W

螺紋刀片16IR W

(0) 添加產品評論
Minimum Order Quantity
FOB Price R0.0 / Piece
供應能力: 60000 片/月
港口: 成都/上海/廣州/深圳
付款方式: 信用證,電子匯款,西聯銀行
Minimum Order Quantity: 10 片
數量:
庫存 (全部: 0 件數.)
聯系客服
所有貨物價格都請參照最新價格
Specifications
供應能力: 60000 片/月
港口: 成都/上海/廣州/深圳
付款方式: 信用證,電子匯款,西聯銀行
Minimum Order Quantity: 10 片
產品細節

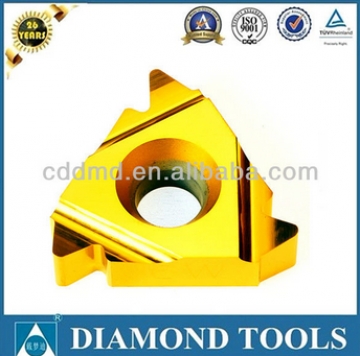

螺紋刀片16IR W

Carbide?threading inserts for whitworth BSW thread

1.?Smooth?rake?face?makes?the?chip?removal?easier

2.?Uniform?horning?cutting?edge?ensures?the?insert?small?cutting?force

3.?BALINIT??coatings?(Oerlikon?Balzers)?allows?long?tool?life?and?improves?the?performance

?

Specification

thread inserts for steel D Pitch Designation Dimension
TPI Right Hand Left Hand L X Y
Whitworth BSW 55° 3/8" 28 16IR28 W 16IL28 W 16 0.6 0.7
26 16IR26 W 16IL26 W 0.7 0.8
20 16IR20 W 16IL20 W 0.8 0.9
19 16IR19 W 16IL19 W 0.8 1.0
18 16IR18 W 16IL18 W 0.8 0.9
16 16IR16 W 16IL16 W 0.9 1.1
14 16IR14 W 16IL14 W 1.0 1.2
12 16IR12 W 16IL12 W 1.1 1.4
11 16IR11 W 16IL11 W 1.1 1.5
10 16IR10 W 16IL10 W 1.1 1.5
9 16IR9 W 16IL9 W 1.2 1.5
8 16IR8 W 16IL8 W 1.2 1.7

??Remark:?If you can't search the types/models you are looking for, please contact us directly.

?

Strict Production Flow

Quality Control by different devices in every process incl. raw material, manufacture, grinding, passivation, coating, inspection, packing.

DIAMOND??thread tools have?exceptional edge quality, tolerance and uniformity to ensure MAX machining productivity!
