22IR 5.0 TR Internal threaded insert carbide
| FOB Price | R0.0 / Piece |
- 數量:
Carbide Indexable Inserts

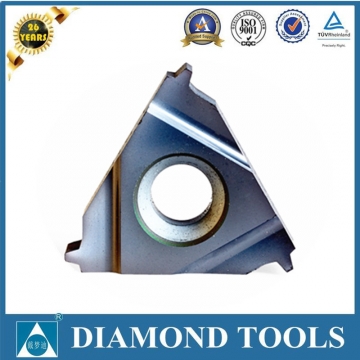

TR (Trapeze DIN 103)?carbide indexable?threading inserts :
?
?
Application:?
carbide indexable threading Insert with TiN coating is suitable for steel, copper and other alloy aluminium processing application, and the other one with TiALN coating is suitable for?stainless steel processing application.
???
Engineering Drawing and Selection Table:
?
??
| ? | D | Pitch | Designation | Dimension | |||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| External | 3/8" | 1.5 | 16ER1.5 TR | 16EL1.5 TR | 16 | 1.0 | 1.1 |
| 2.0 | 16ER2.0 TR | 16EL2.0 TR | 1.1 | 1.3 | |||
| 3.0 | 16ER3.0 TR | 16EL3.0 TR | 1.3 | 1.5 | |||
| 1/2" | 4.0 | 22ER4.0 TR | 22EL4.0TR | 22 | 1.7 | 1.9 | |
| 5.0 | 22ER5.0 TR | 22EL5.0 TR | 2.1 | 2.5 | |||
| 5/8" | 6.0 | 27ER6.0 TR | 27EL6.0 TR | 27 | 2.2 | 2.6 | |
| 7.0 | 27ER7.0 TR | 27EL7.0 TR | 2.3 | 2.7 | |||
| Internal | 3/8" | 1.5 | 16IR1.5 TR | 16IL1.5 TR | 16 | 1.0 | 1.1 |
| 2.0 | 16IR2.0 TR | 16IL2.0 TR | 1.1 | 1.3 | |||
| 3.0 | 16IR3.0 TR | 16IL3.0 TR | 1.3 | 1.5 | |||
| 1/2" | 4.0 | 22IR4.0 TR | 22IL4.0TR | 22 | 1.7 | 1.9 | |
| 5.0 | 22IR5.0 TR | 22IL5.0 TR | 2.1 | 2.5 | |||
| 5/8" |
