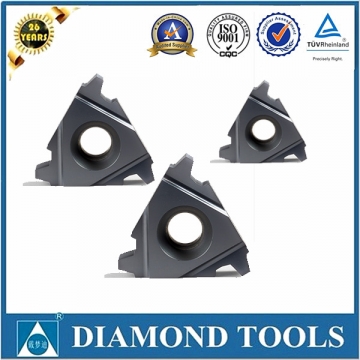

Cemented carbide Insert 22IR 4.0 TR
| FOB Price | R0.0 / Piece |
- 數量:
所有貨物價格都請參照最新價格
Specifications
產品細節
Carbide Indexable Inserts
?
TR (Trapeze DIN 103)?carbide indexable?threading inserts :
?
?
Application:?
carbide indexable threading Insert with TiN coating is suitable for steel, copper and other alloy aluminium processing application, and the other one with TiALN coating is suitable for?stainless steel processing application.
???
Engineering Drawing and Selection Table:
?
??
| ? | D | Pitch | Designation | Dimension | |||
| TPI | Right Hand | Left Hand | L | X | Y | ||
| External | 3/8" | 1.5 | 16ER1.5 TR | 16EL1.5 TR | 16 | 1.0 | 1.1 |
| 2.0 | 16ER2.0 TR | 16EL2.0 TR | 1.1 | 1.3 | |||
| 3.0 | 16ER3.0 TR | 16EL3.0 TR | 1.3 | 1.5 | |||
| 1/2" | 4.0 | 22ER4.0 TR | 22EL4.0TR | 22 | 1.7 | 1.9 | |
| 5.0 | 22ER5.0 TR | 22EL5.0 TR | 2.1 | 2.5 | |||
| 5/8" | 6.0 | 27ER6.0 TR | 27EL6.0 TR | 27 | 2.2 | 2.6 | |
| 7.0 | 27ER7.0 TR | 27EL7.0 TR | 2.3 | 2.7 | |||
| Internal | 3/8" | 1.5 | 16IR1.5 TR | 16IL1.5 TR | 16 | 1.0 | 1.1 |
| 2.0 | 16IR2.0 TR | 16IL2.0 TR | 1.1 | 1.3 | |||
| 3.0 | 16IR3.0 TR | 16IL3.0 TR | 1.3 | 1.5 | |||
| 1/2" | 4.0 | 22IR4.0 TR | 22IL4.0TR | 22 | 1.7 | 1.9 | |
| 5.0 | 22IR5.0 TR | 22IL5.0 TR | 2.1 | 2.5 | |||
| 5/8" | 6.0 |
